Technical Specifications
Microchip PIC16F1828-E/GZ technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1828-E/GZ Datasheet
Download the complete datasheet for Microchip PIC16F1828-E/GZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

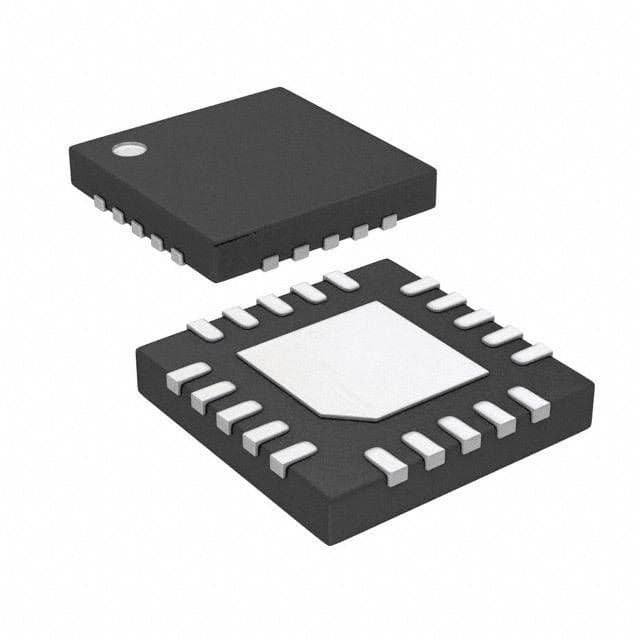

Product Images
