8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. This QFN-packaged IC offers 17 programmable I/Os, 12 A/D channels, and multiple communication interfaces including I2C, SPI, and UART. With 256B RAM and integrated peripherals like PWM and Watchdog Timer, it operates from 2.3V to 5.5V within a -40°C to 85°C temperature range.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1828-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
4mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
17
Number of I2C Channels
1
Number of Programmable I/O
17
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1828-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1828-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

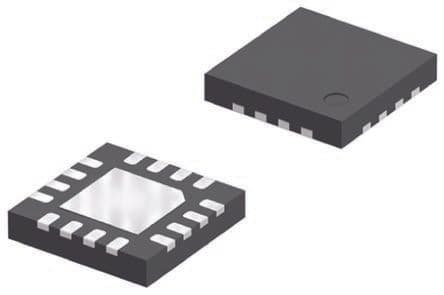

Product Images
