8-bit RISC microcontroller featuring 32MHz clock speed and 7KB FLASH memory. This surface mount device offers 18 I/Os, including 17 programmable, with I2C, SPI, and UART interfaces. Integrated peripherals include 5 timers, 4 PWM channels, and 12 ADC channels with 1 A/D converter. Operating from 2.3V to 5.5V, it supports a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
Current145uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1828-I/SS technical specifications.
General
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
17
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Supply Current
145uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1828-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1828-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

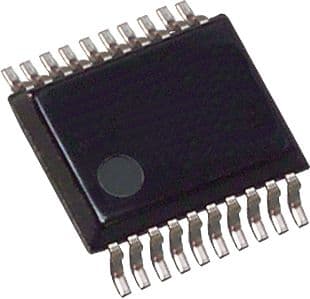

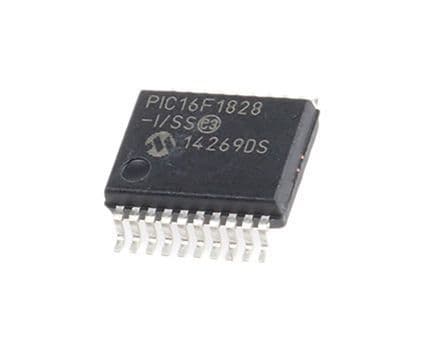

Product Images
