8-bit RISC Flash Microcontroller featuring a 32MHz maximum operating frequency and 256B RAM. This integrated circuit offers 7KB of FLASH memory, 17 programmable I/O pins, and supports I2C, SPI, and UART interfaces. Operating within a 2.3V to 5.5V supply voltage range, it includes 12 ADC channels and 5 timers/counters. Packaged in a 20-pin SOIC, this lead-free and RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F1828T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
0.093inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
0.503inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
17
Number of I2C Channels
1
Number of Programmable I/O
17
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1828T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1828T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

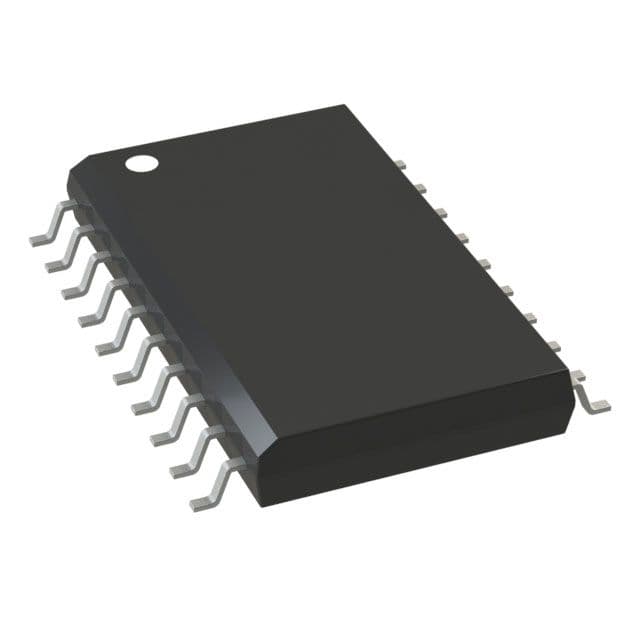

Product Images
