Technical Specifications
Microchip PIC16F1829-E/GZ technical specifications.
General
| Core Architecture | PIC |
| Interface | I2C, SPI, UART, USART |
| Max Operating Temperature | 125°C |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 17 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ mTouch™ 16F |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1829-E/GZ Datasheet
Download the complete datasheet for Microchip PIC16F1829-E/GZ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

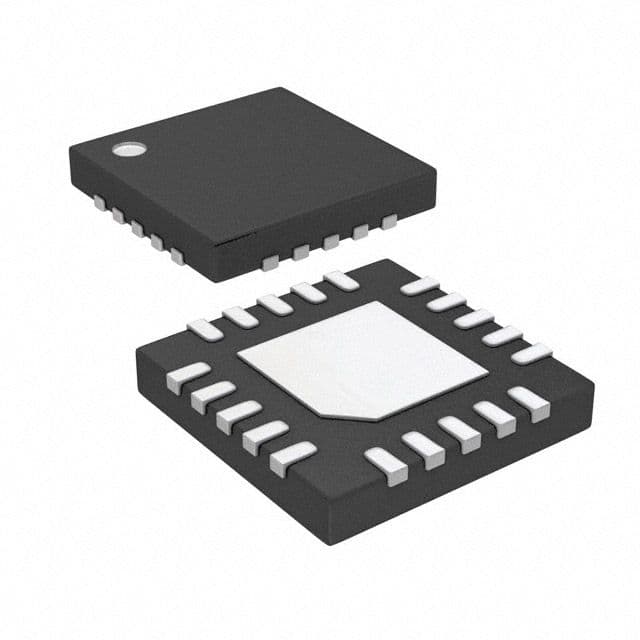

Product Images
