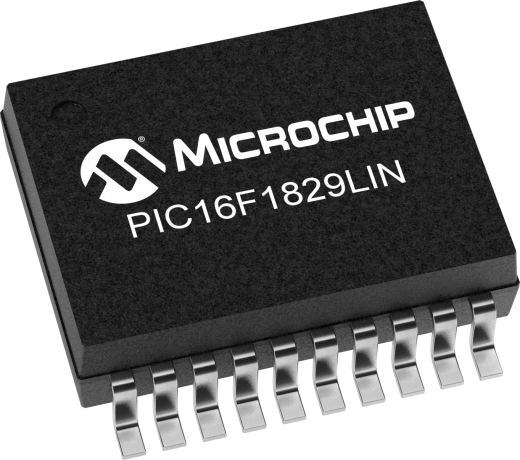

8-bit PIC microcontroller featuring a 32MHz core frequency and 14KB FLASH memory. This surface mount device offers 13 I/Os, 9 ADC channels, and 5 timers/counters. Integrated interfaces include I2C, SPI, UART, USART, and LIN. Operates within a 2.3V to 5.5V supply range and a -40°C to 85°C temperature range, housed in a 1.85mm high SSOP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC16F1829LIN-I/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, UART, USART, LIN |
| Length | 7.5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of ADC Channels | 9 |
| Number of I/Os | 13 |
| Number of Timers/Counters | 5 |
| Package Quantity | 67 |
| Packaging | Rail/Tube |
| RAM Size | 1024B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 5.6mm |
| RoHS | Compliant |
