Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1829LINT-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1024B
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1829LINT-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1829LINT-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

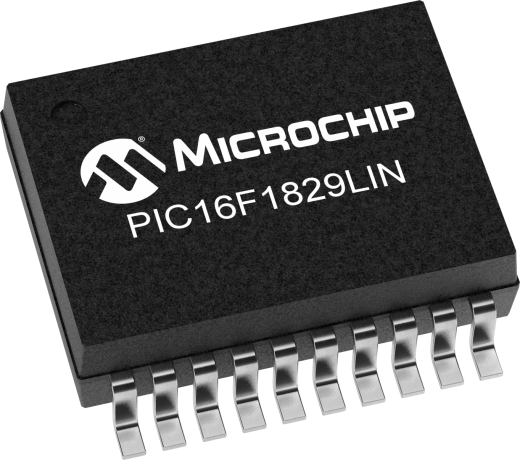

Product Images
