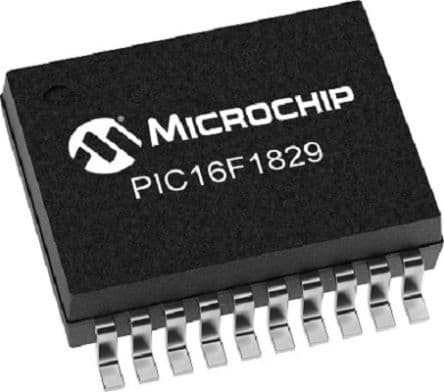

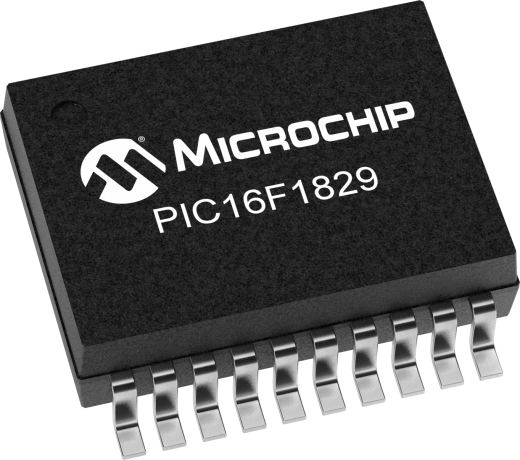

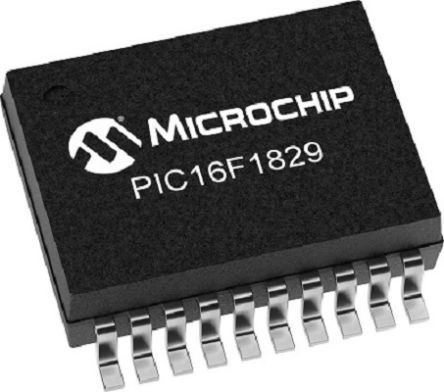

8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 14KB Flash program memory and 1KB RAM. Offers 17 I/O pins with 18 programmable I/O options. Includes I2C, SPI, USART, UART, and LIN interfaces. Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Operates from 2.3V to 5.5V supply voltage, with a temperature range of -40°C to 85°C. Packaged in SSOP-20.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC16F1829T-I/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Interface | I2C, SPI, USART, UART, LIN |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.3V |
| Number of I/Os | 17 |
| Number of Programmable I/O | 18 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ mTouch™ 16F |
| Watchdog Timer | Yes |
| RoHS | Compliant |
