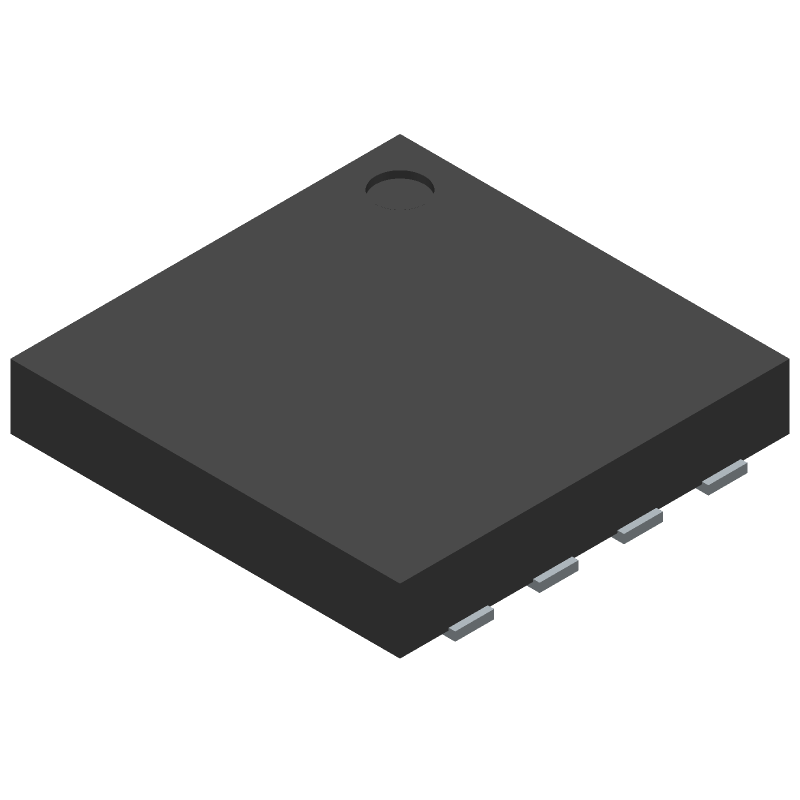

8-bit RISC microcontroller featuring 2048 words of FLASH program memory and 256 bytes of RAM. Operates with a maximum clock frequency of 32 MHz and a supply voltage range of 2.5V to 5.5V. Includes 6 I/O lines, PWM channels, an ADC, and a DAC. Packaged in an 8-terminal S-PDSO-N8 with dimensions of 3mm x 3mm, suitable for automotive temperature grades (-40°C to 125°C).
Frequency32
Quick Jump:
Technical Specifications
Microchip PIC16F18313-E/RF technical specifications.
General
Max Operating Temperature
125
Number of Terminals
8
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
S-PDSO-N8
Width
3
Length
3
Temperature Grade
AUTOMOTIVE
Supply Current-Max
2.6
Supply Voltage-Nom
3
Supply Voltage-Min
2.5
Supply Voltage-Max
5.5
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
6
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
32
ROM Programmability
FLASH
ROM (words)
2048
RAM (bytes)
256
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
YES
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
