8-bit RISC microcontroller featuring 3.5KB FLASH memory and 256B RAM. Surface mount SOIC package with 6 I/Os, supporting I2C, SPI, and UART interfaces. Includes 3 timers, 2 PWM channels, and 5 ADC channels. Operates from 2.3V to 5.5V, with an operating temperature range of -40°C to 85°C. Integrated peripherals include Brown-out Detect/Reset, POR, and WDT.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F18313-I/SN technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
1.75mm
Interface
I2C, SPI, UART, USART
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
5
Number of I/Os
6
Number of I2C Channels
1
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F18313-I/SN Datasheet
Download the complete datasheet for Microchip PIC16F18313-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

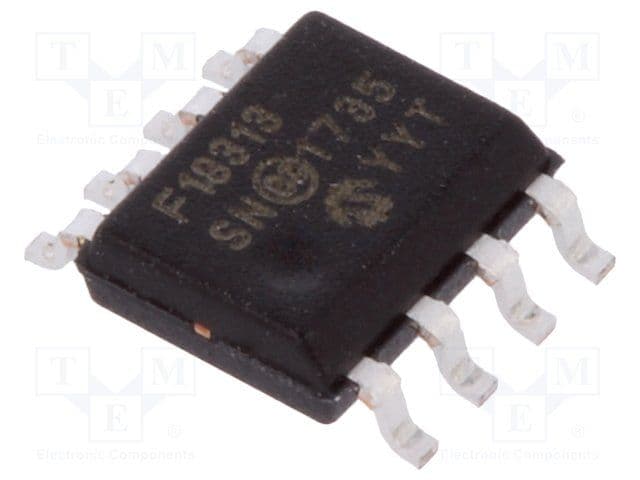

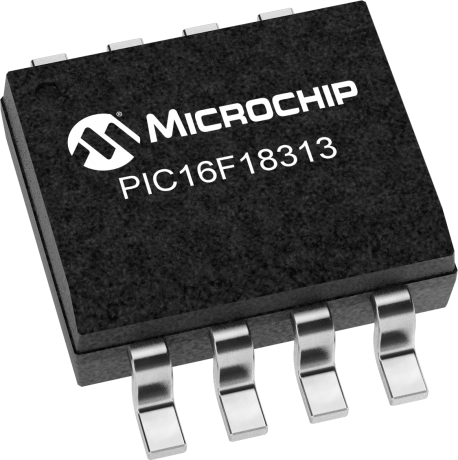

Product Images
