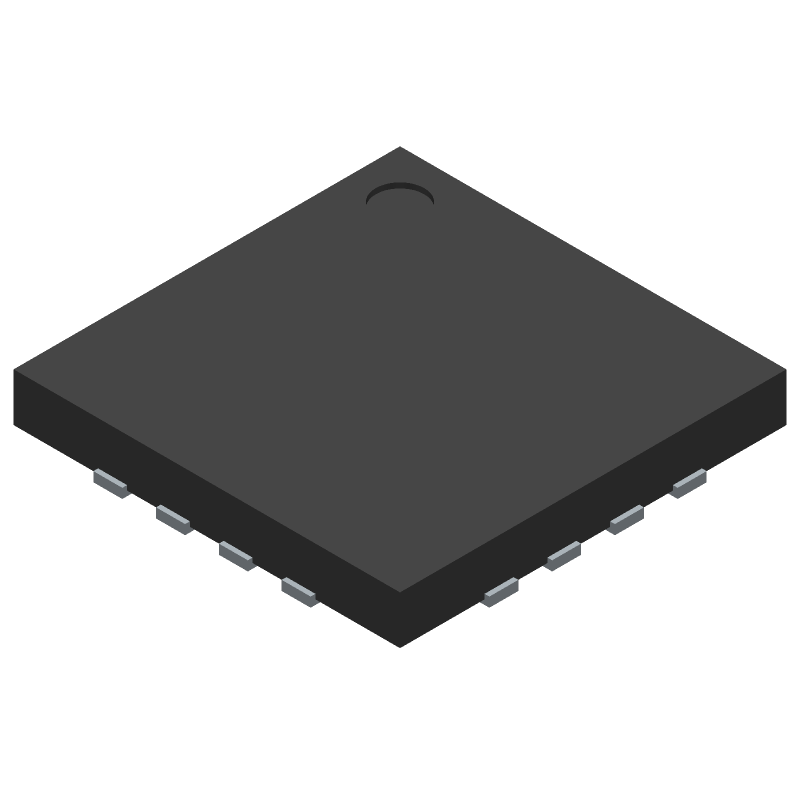

8-bit RISC microcontroller featuring 12 I/O lines and 32 MHz clock speed. This industrial-grade component operates from 2.5V to 5.5V supply voltage, with a temperature range of -40°C to 85°C. Includes PWM and DAC capabilities, with an ADC present. Packaged in a 16-terminal S-PQCC-N16 JEDEC package, measuring 4mm x 4mm.
Frequency32
Quick Jump:
Technical Specifications
Microchip PIC16F18426-I/JQ technical specifications.
General
Max Operating Temperature
85
Number of Terminals
16
Min Operating Temperature
-40
Terminal Position
QUAD
JEDEC Package Code
S-PQCC-N16
Width
4
Length
4
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom
3
Supply Voltage-Min
2.5
Supply Voltage-Max
5.5
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
12
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
32
ROM Programmability
FLASH
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
YES
Screening Level
TS 16949
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
