8-bit Flash Microcontroller featuring a 32 MHz RISC core. This surface-mount device offers 7KB of FLASH memory and 256B of RAM, with 25 programmable I/O pins. Integrated peripherals include SPI, I2C, UART, USART, LIN interfaces, along with POR, PWM, WDT, and LCD controllers. Operating from 1.8V to 5.5V, it supports a maximum power dissipation of 800mW and operates within a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC W
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1933T-I/SO technical specifications.
General
Package/Case
SOIC W
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Programmable I/O
25
Number of Timers/Counters
5
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1933T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1933T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

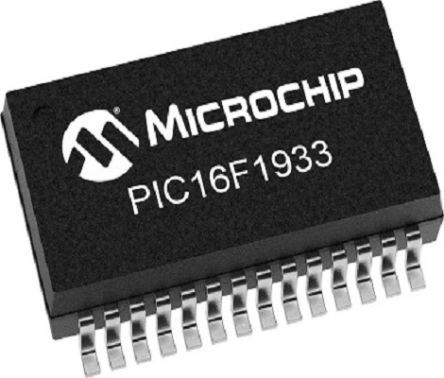

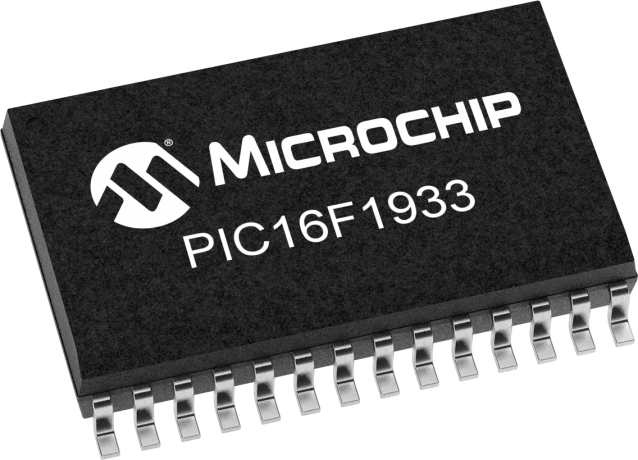

Product Images
