8-bit RISC microcontroller featuring 32MHz clock speed and 7KB FLASH memory. This surface mount device offers 25 programmable I/Os and supports SPI, I2C, UART, USART, and LIN interfaces. Includes 5 timers/counters, internal oscillator, and peripherals such as PWM, WDT, and LCD. Operates from 1.8V to 5.5V with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1933T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1933T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1933T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

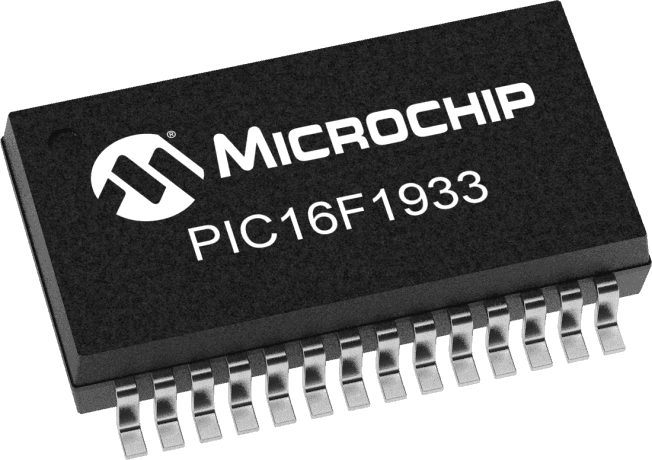

Product Images
