8-bit RISC Flash Microcontroller operating at up to 32MHz. Features 7KB Flash memory, 256B RAM, and 36 programmable I/O pins. Supports SPI, I2C, UART, and USART interfaces, with 5 timers/counters and integrated peripherals including Brown-out Detect, POR, PWM, WDT, and LCD. Operates from 1.8V to 5.5V, with a maximum power dissipation of 800mW and an operating temperature range of -40°C to 125°C. Surface mount QFN EP package, lead-free and RoHS compliant.
Frequency32MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1934-E/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, I2C, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Programmable I/O
36
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1934-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F1934-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

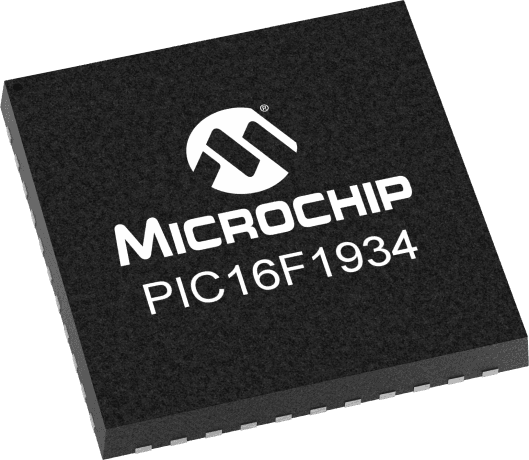

Product Images
