8-bit RISC Flash Microcontroller, operating at 32MHz, featuring 14KB Flash memory and 512B RAM. This surface mount device offers 36 programmable I/O pins and supports SPI, I2C, and UART interfaces. Integrated peripherals include 14 ADC channels, 5 timers/counters, and a watchdog timer, with a wide operating temperature range of -40°C to 125°C. The QFN EP package measures 8mm x 8mm x 0.95mm and operates from 1.8V to 5.5V.
Frequency32MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1937-E/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
SPI, I2C, UART, USART
Length
8mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
14
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1937-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F1937-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

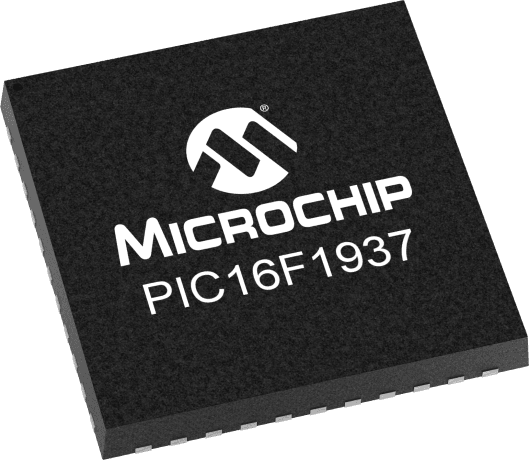

Product Images
