8-bit RISC microcontroller featuring 32MHz clock speed and 28KB FLASH memory. This PIC® XLP™ 16F series MCU offers 24 I/O pins, 1KB RAM, and supports SPI, I2C, and UART interfaces. Operating from 1.8V to 5.5V, it includes 5 timers/counters, PWM, WDT, and LCD peripherals. Packaged in a lead-free QFN EP 28-pin package, it operates across a -40°C to 125°C temperature range.
Frequency32MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC16F1938-E/ML technical specifications.
General
| Package/Case | QFN EP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Interface | SPI, I2C, UART, USART |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 28KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 24 |
| Number of Programmable I/O | 25 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1938-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F1938-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

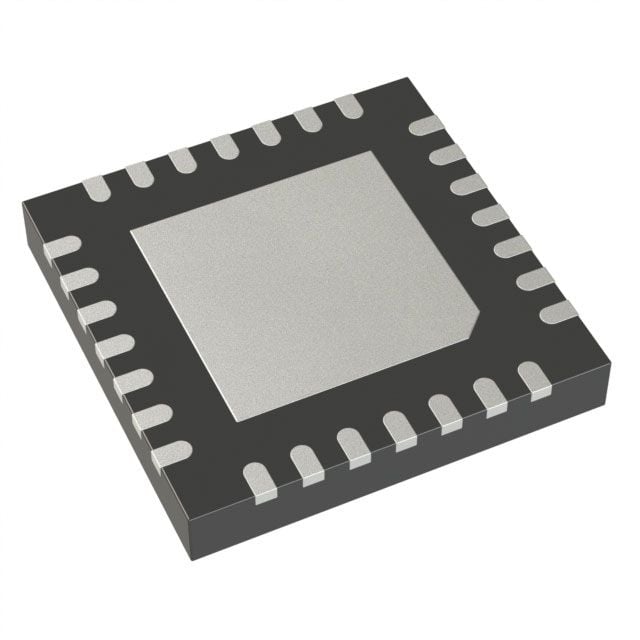

Product Images
