8-bit RISC Flash Microcontroller operating at 32MHz. Features 28KB Flash memory, 1KB RAM, and 24 I/O pins. Supports SPI, I2C, UART, USART, and LIN interfaces, with 11 ADC channels and 5 timers. Packaged in a 28-pin QFN (6x6mm) with SMD/SMT termination, operating from 1.8V to 5.5V. Includes peripherals like PWM, WDT, and LCD, with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1938-I/ML technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.5mm |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 28KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 11 |
| Number of I/Os | 24 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 25 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1938-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1938-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

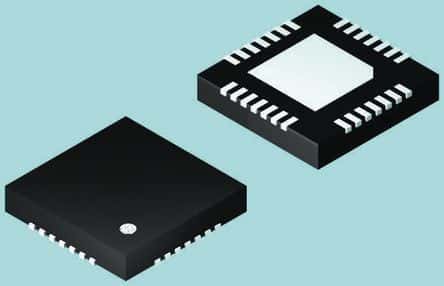

Product Images
