8-bit RISC microcontroller featuring 32MHz operation and 28KB FLASH memory. This integrated circuit offers 24 I/O pins, 11 ADC channels, and supports SPI, I2C, UART, USART, and LIN interfaces. With 1KB RAM, 5 timers/counters, and integrated peripherals including PWM and a watchdog timer, it operates from 1.8V to 5.5V within a -40°C to 85°C temperature range. Packaged in a lead-free SSOP-28, this surface-mount device is RoHS compliant.
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1938-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.85mm
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
11
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
5
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1938-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1938-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

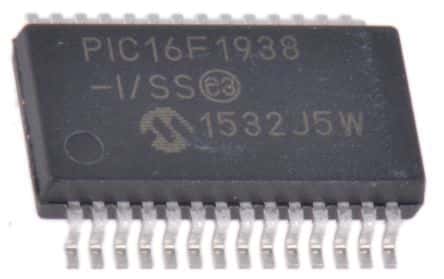

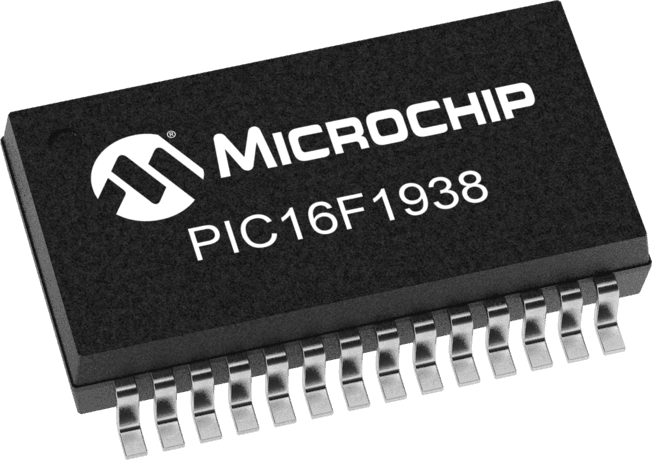

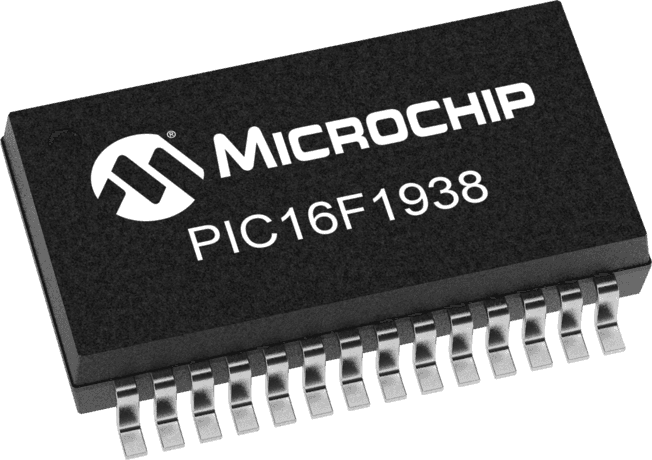

Product Images
