8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 28KB Flash memory, 1KB RAM, and 35 I/O pins. Integrated peripherals include SPI, I2C, UART, USART, PWM, and a watchdog timer. Operates from 1.8V to 5.5V with a temperature range of -40°C to 125°C. Packaged in a 44-pin QFN EP.
Frequency32MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC16F1939-E/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, I2C, UART, USART
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1939-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F1939-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

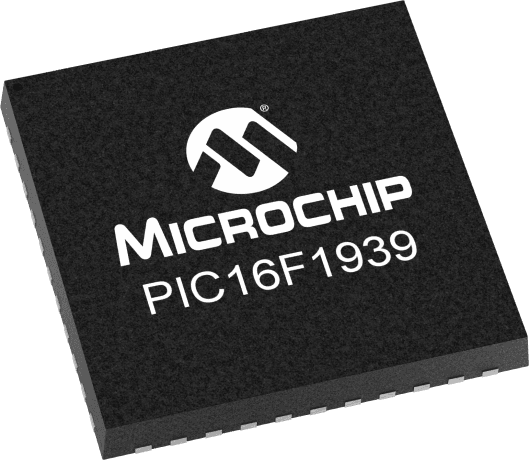

Product Images
