8-bit RISC microcontroller featuring 32MHz operation and 28KB FLASH memory. This PDIP-packaged MCU offers 36 programmable I/Os, 14 ADC channels, and 5 PWM channels. Integrated peripherals include SPI, I2C, UART, USART, LIN, and a watchdog timer. Operating voltage ranges from 1.8V to 5.5V, with a temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
Current5.3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1939-I/P technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 28KB |
| Frequency | 32MHz |
| Height | 0.2inch |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 53.34mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 28KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Number of ADC Channels | 14 |
| Number of I/Os | 36 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 36 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 5.3mA |
| Termination | Through Hole |
| Watchdog Timer | Yes |
| Width | 0.58inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1939-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1939-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

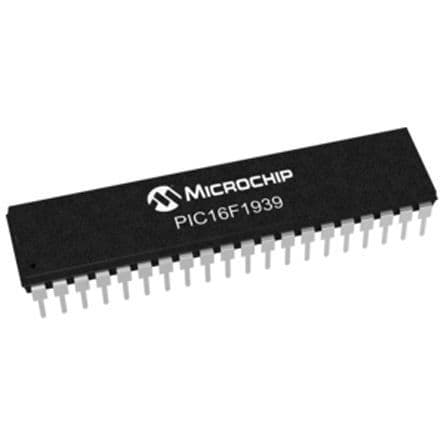

Product Images
