8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 20MHz. This surface mount device offers 1.5KB of FLASH memory, 68B RAM, and 18 I/O pins with 17 programmable. Integrated peripherals include Brown-out Detect/Reset, POR, and WDT, alongside an internal oscillator and 8 ADC channels. It supports RS-232 and USB interfaces, operates from a 2V to 5.5V supply, and is housed in a lead-free SSOP package.
Frequency20MHz
PackageSSOP
Current1.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F527-I/SS technical specifications.
General
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.85mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
7.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
18
Number of Programmable I/O
17
Number of Timers/Counters
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
68B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1.4mA
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F527-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F527-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

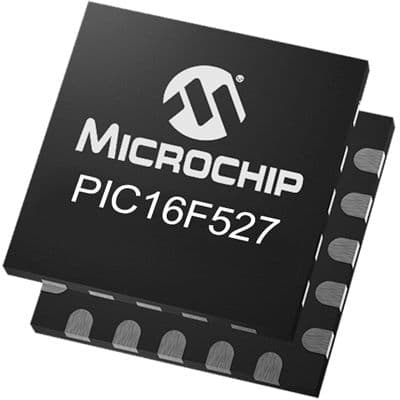

Product Images
