8-bit PIC RISC microcontroller featuring 768B Flash memory and 25B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Supports supply voltages from 2V to 5.5V and offers 12 programmable I/O pins. Includes POR and WDT peripherals, with an external oscillator. Packaged in a 18-pin PDIP for through-hole mounting, operating from -40°C to 85°C.
Frequency20MHz
PackagePDIP
Current400uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F54-I/P technical specifications.
General
| Access Time | 20us |
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 0.195inch |
| Lead Free | Lead Free |
| Length | 23.37mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 768B |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of I/Os | 12 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 1 |
| Oscillator Type | External |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 25B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Supply Current | 400uA |
| Watchdog Timer | Yes |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F54-I/P Datasheet
Download the complete datasheet for Microchip PIC16F54-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

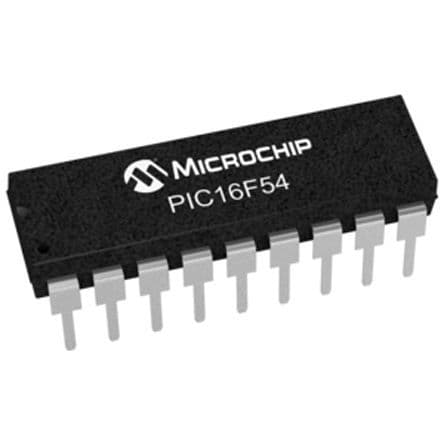

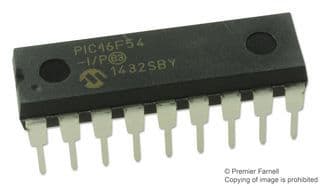

Product Images
