8-bit RISC Flash Microcontroller, operating at up to 20MHz. Features 768B Flash memory, 25B RAM, and 12 programmable I/Os. Includes a watchdog timer and POR peripheral. Operates from 2V to 5.5V supply, with a maximum power dissipation of 800mW. Packaged in an 18-pin SOIC surface mount package.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F54T-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
768B
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F54T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F54T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

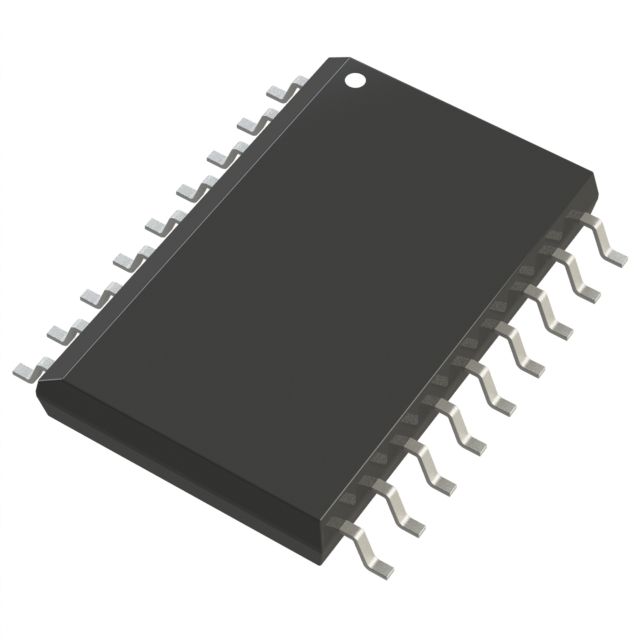

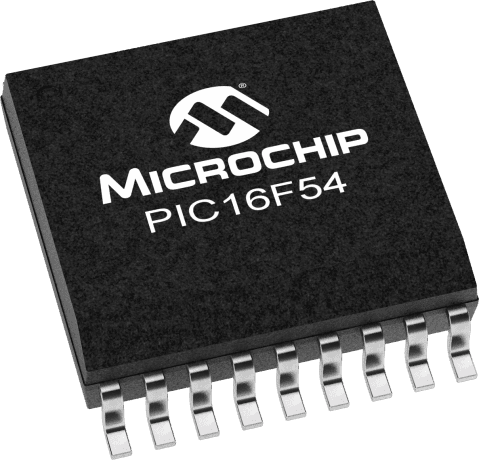

Product Images
