8-bit RISC microcontroller featuring 3KB FLASH memory and 72B RAM, operating at up to 20MHz. This through-hole component offers 20 programmable I/O pins and includes a watchdog timer and Power-On Reset (POR) peripheral. Designed for a wide temperature range of -40°C to 125°C, it supports a supply voltage from 2V to 5.5V with a maximum power dissipation of 800mW. The PDIP package is lead-free and RoHS compliant.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F57-E/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F57-E/P Datasheet
Download the complete datasheet for Microchip PIC16F57-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

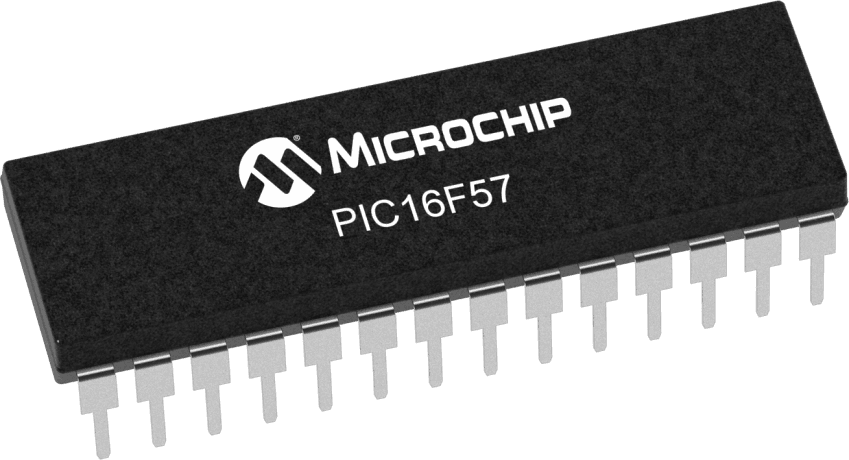

Product Images
