8-bit RISC microcontroller with 3KB FLASH memory and 72B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Features 20 programmable I/Os, one timer/counter, and includes POR and WDT peripherals. Packaged in a 28-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C and a maximum supply voltage of 5.5V. RoHS compliant.
Frequency20MHz
PackagePDIP
Current400uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F57-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
3KB
Frequency
20MHz
Height
0.195inch
Lead Free
Lead Free
Length
39.75mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
8
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
400uA
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F57-I/P Datasheet
Download the complete datasheet for Microchip PIC16F57-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

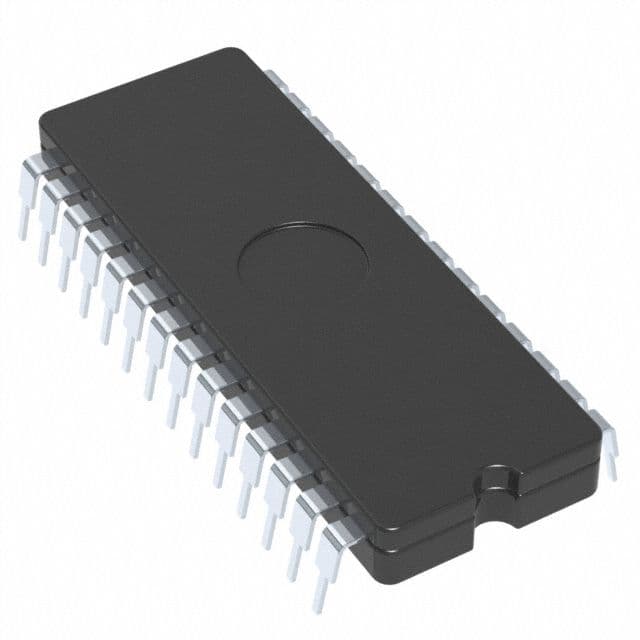

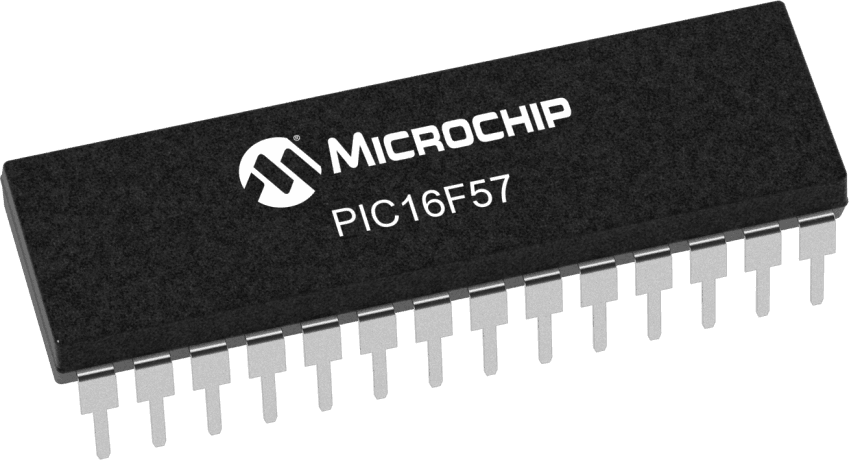

Product Images
