8-bit RISC microcontroller featuring 20MHz operation and 3KB FLASH memory. This through-hole DIP package offers 20 programmable I/Os, an 8-bit address and data bus, and operates from 2V to 5.5V. Includes one timer/counter, POR, and WDT peripherals, with a typical supply current of 400uA. Suitable for applications requiring a wide operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageDIP
Current400uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F57-I/SP technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.15inch
Lead Free
Lead Free
Length
35.56mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
400uA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F57-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F57-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

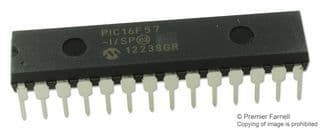

Product Images
