8-bit RISC microcontroller featuring 3KB FLASH memory and 72B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 20 programmable I/O pins, one timer/counter, and POR/WDT peripherals. Surface mountable in a 28-pin SSOP package, supporting a supply voltage range of 2V to 5.5V. Rated for operation between -40°C and 85°C.
Frequency20MHz
PackageSSOP
Current170uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F57-I/SS technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.85mm
Lead Free
Lead Free
Length
10.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
170uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F57-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F57-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

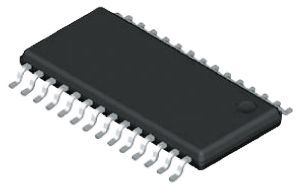

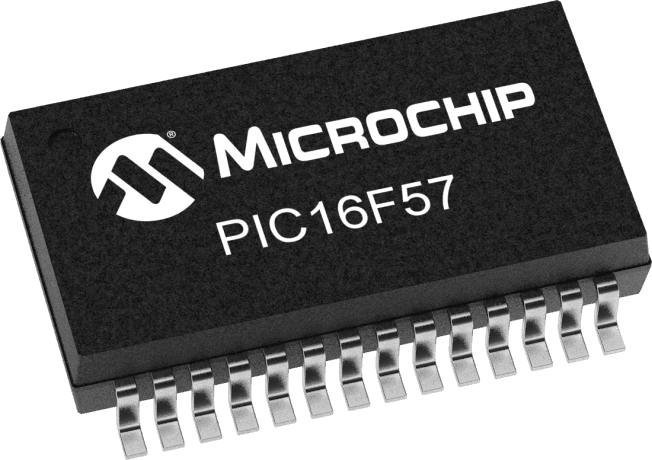

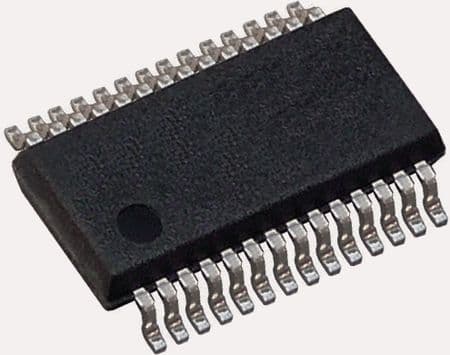

Product Images
