8-bit PIC microcontroller featuring 3KB FLASH program memory and 134B RAM. Operates at up to 20MHz with a 20µs access time. Offers 32 programmable I/O pins, one timer/counter, and peripherals including POR and WDT. Suitable for surface mount applications with a 44-pin TQFP package, operating from 2V to 5.5V supply voltage. Extended temperature range from -40°C to 85°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F59T-I/PT technical specifications.
General
Access Time
20us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
134B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F59T-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F59T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

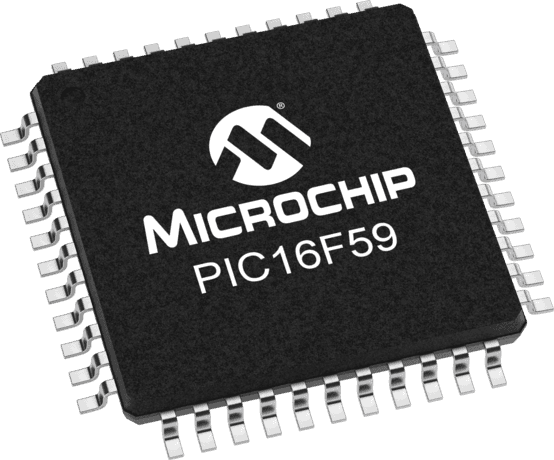

Product Images
