8-bit RISC Flash Microcontroller operating at up to 20MHz. Features 3.5KB Flash memory, 128B RAM, and 11 programmable I/O pins. Includes RS-232 and USB interfaces, 3 timers/counters, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 14-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 125°C and a maximum supply voltage of 5.5V. RoHS compliant and lead-free.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F616-E/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of I/Os
11
Number of Programmable I/O
11
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F616-E/P Datasheet
Download the complete datasheet for Microchip PIC16F616-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

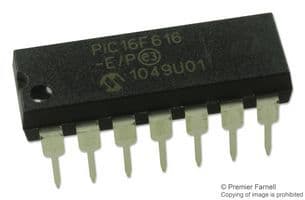

Product Images
