8-bit RISC microcontroller featuring 20MHz operation and 3.5KB FLASH memory. This surface mount device offers 128B RAM, 11 programmable I/Os, and 8 ADC channels with one A/D converter. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Operating from 2V to 5.5V, it supports RS-232 and USB interfaces and is RoHS compliant.
Frequency20MHz
PackageSOIC
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F616-I/SL technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.5mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
8.65mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
11
Number of Programmable I/O
11
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
220uA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F616-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F616-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

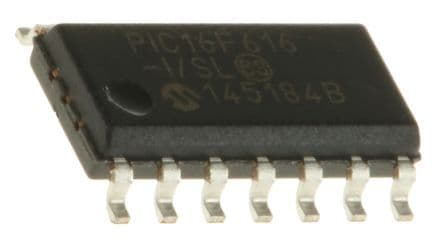

Product Images
