8-bit RISC microcontroller featuring 20MHz clock speed and 1.75KB FLASH program memory. Offers 224B RAM, 16 programmable I/Os, and 3 timers/counters. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Operates from 3V to 5.5V supply voltage with a maximum power dissipation of 800mW. Packaged in a 28-pin SOIC (PDSO18) with a 20µs access time.
Frequency20MHz
PackageSOIC
Current4mA
Quick Jump:
Technical Specifications
Microchip PIC16F627-20/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.39mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
11.73mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Memory Size
1.75KB
Memory Type
FLASH
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
4mA
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F627-20/SO Datasheet
Download the complete datasheet for Microchip PIC16F627-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

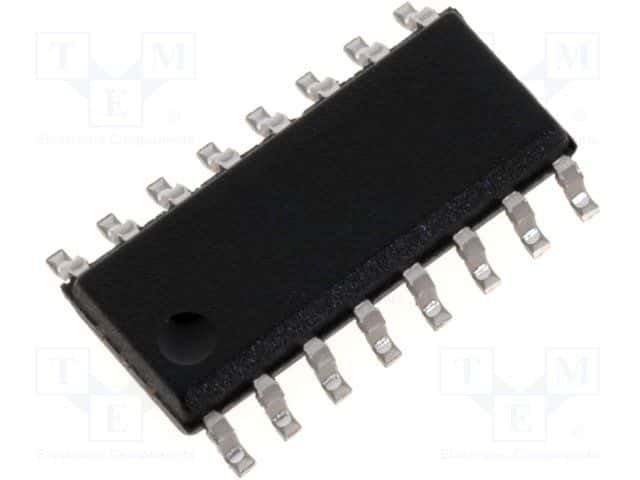

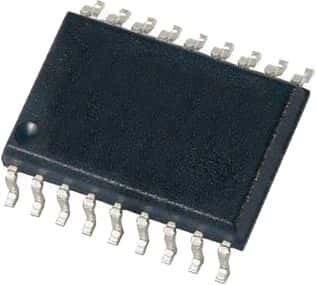

Product Images
