8-bit RISC microcontroller featuring 4MHz operation and 3.5KB FLASH memory. This integrated circuit offers 16 programmable I/Os, 3 timers/counters, and an internal oscillator. It supports USART, SCI, and UART interfaces, with peripherals including Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in an 18-pin SOIC (PDSO18, 0.300 inch) with a temperature range of -40°C to 85°C, this lead-free, RoHS compliant component operates from 3V to 5.5V.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F628T-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
3V
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F628T-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16F628T-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

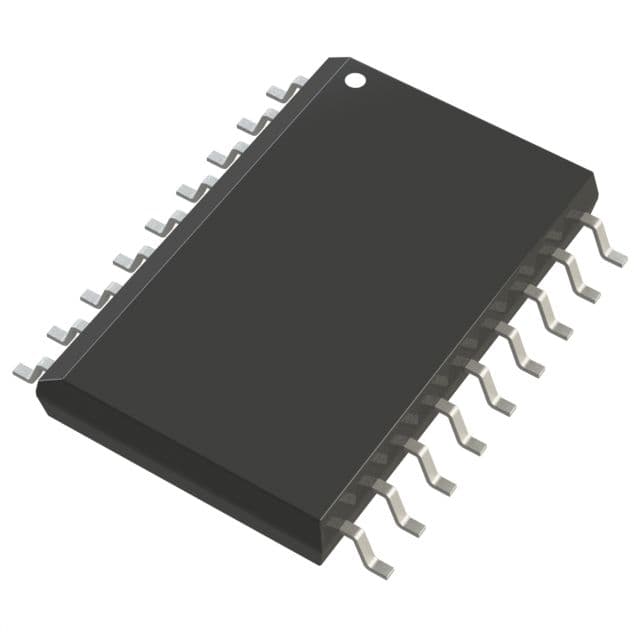

Product Images
