8-bit RISC microcontroller featuring 20MHz clock speed and 1.75KB FLASH memory. This through-hole component offers 12 programmable I/O pins, 64B RAM, and two timers/counters. Integrated peripherals include Brown-out Detect, POR, and a Watchdog Timer. Operating voltage ranges from 2V to 5.5V, with an access time of 20µs. The PDIP package is lead-free and suitable for industrial applications.
Frequency20MHz
PackagePDIP
Current100uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F630-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
20MHz
Height
0.195inch
Interface
RS-232, USB
Lead Free
Lead Free
Length
19.69mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
0
Number of Bits
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
100uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F630-I/P Datasheet
Download the complete datasheet for Microchip PIC16F630-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

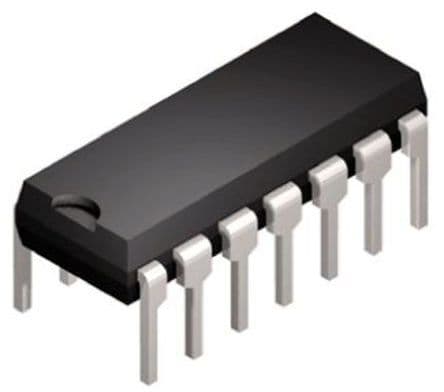

Product Images
