8-bit RISC Flash Microcontroller operating at 20MHz. Features 1.5KB Flash memory, 64B RAM, and 18 programmable I/O pins. Includes 2 timers/counters, internal oscillator, and peripherals such as Brown-out Detect/Reset, POR, WDT, and PWM. Packaged in a 20-pin SOIC surface mount format, this RoHS compliant component operates from 4.5V to 5.5V with a maximum power dissipation of 800mW and an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F631T-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Programmable I/O
18
Number of Timers/Counters
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, PWM
Radiation Hardening
No
RAM Size
64B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F631T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F631T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

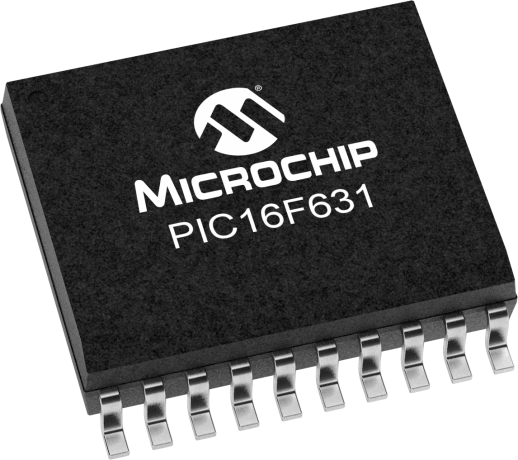

Product Images
