8-bit RISC microcontroller featuring 20MHz clock speed and 3.5KB FLASH memory. This surface mount device offers 12 programmable I/Os, two timers/counters, and integrated SPI, RS-232, and USB interfaces. Operating from 2V to 5.5V, it includes essential peripherals like POR, WDT, and Brown-out Detect, with a temperature range of -40°C to 85°C. The TSSOP-14 package measures 5.1mm x 4.5mm x 1.05mm.
Frequency20MHz
PackageTSSOP
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F636-I/ST technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.05mm
Interface
SPI, RS-232, USB
Lead Free
Lead Free
Length
5.1mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
96
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, LVD
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
100uA
Watchdog Timer
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F636-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F636-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

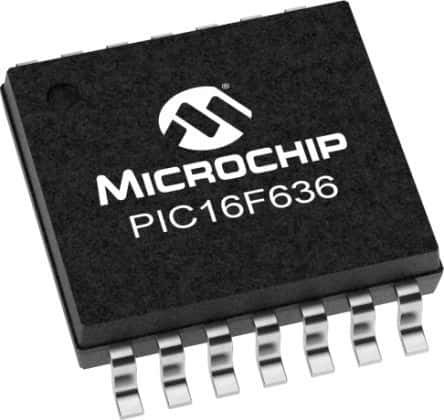

Product Images
