8-bit RISC microcontroller featuring 20MHz operation and 3.5KB FLASH memory. This surface-mount device offers 12 programmable I/Os, 2 timers/counters, and integrated peripherals including Brown-out Detect, POR, WDT, and LVD. Supports SPI and RS-232 interfaces, with a 2V to 5.5V supply voltage range and an operating temperature of -40°C to 85°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F636T-I/SL technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
SPI, RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
2600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, LVD
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F636T-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F636T-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

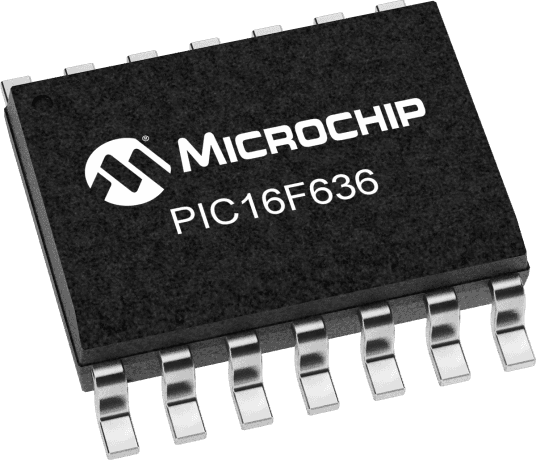

Product Images
