8-bit microcontroller (MCU) with 3.5KB FLASH memory and 128B RAM. Features an 8-bit PIC core architecture, operating up to 20MHz with an internal oscillator. Includes 11 I/Os, 2 timers/counters, and SPI interface. Supports a voltage range of 2V to 5.5V and operates from -40°C to 125°C. Peripherals include Brown-out Detect/Reset, POR, and WDT.
Frequency20MHz
PackagePDIP
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip PIC16F639-E/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip PIC16F639-E/P technical specifications.
General
| Access Time | 20us |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 3.5KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Number of I/Os | 11 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, WDT, LVD |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | No |
| Series | PIC® 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Microchip PIC16F639-E/P Datasheet
Download the complete datasheet for Microchip PIC16F639-E/P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

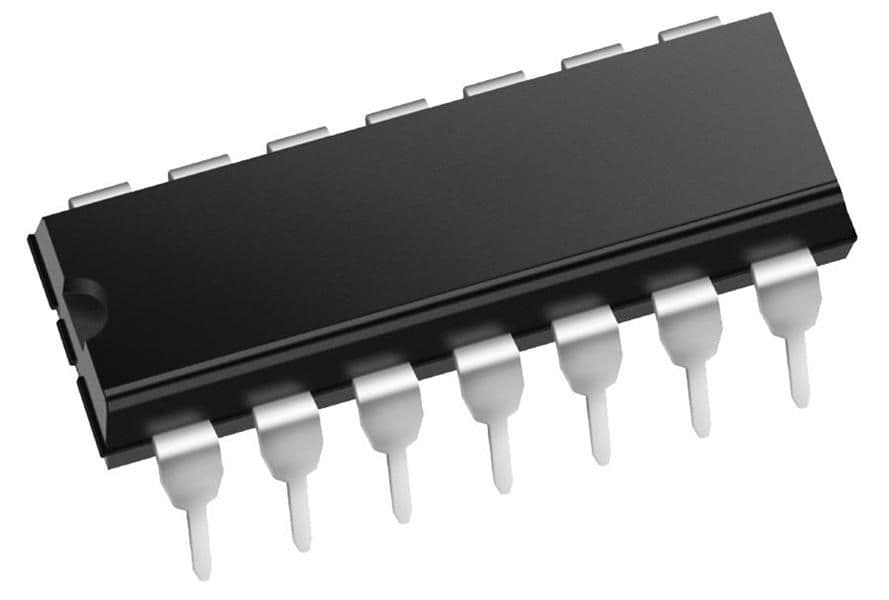

Product Images
