8-bit PIC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus and SPI interface. Includes 11 I/Os, 2 timers/counters, and internal oscillator. Supports a supply voltage range of 2V to 5.5V, with a maximum power dissipation of 800mW. Packaged in a 20-pin PDIP, this component is suitable for operation between -40°C and 85°C.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F639-I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
SPI
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, LVD
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
No
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC16F639-I/P Datasheet
Download the complete datasheet for Microchip PIC16F639-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

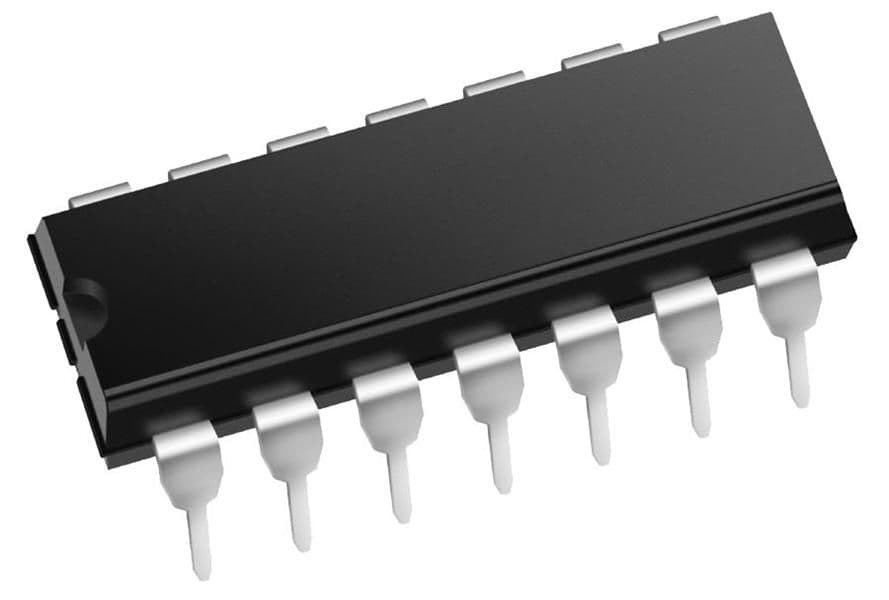

Product Images
