8-bit RISC microcontroller featuring 7KB FLASH memory and 256 bytes of RAM. Operates at a maximum frequency of 20MHz with an 8-bit data bus width. Includes 16 programmable I/O pins, 3 timers/counters, and 1 PWM channel. Supports USART, SCI, and UART interfaces. Packaged in a 28-pin QFN (6x6mm) for surface mounting, with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F648A-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
0.95mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
8
Number of Ethernet Channels
0
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F648A-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F648A-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

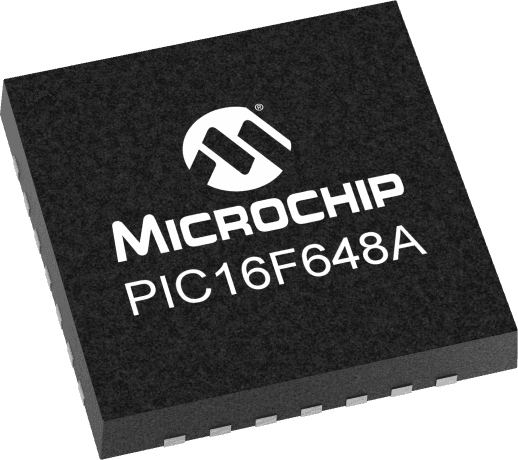

Product Images
