8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 16 programmable I/O pins, 3 timers/counters, 1 PWM channel, and integrated peripherals like Brown-out Detect, POR, and WDT. Supports through-hole mounting in a PDIP package with a voltage range of 3V to 5.5V.
Frequency20MHz
PackagePDIP
Current600uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F648A-I/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
0.195inch
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
23.37mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH, , EEPROM
Min Supply Voltage
3V
Mount
Through Hole
Number of A/D Converters
0
Number of Bits
8
Number of I/Os
16
Number of Inputs
1
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
0
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
600uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F648A-I/P Datasheet
Download the complete datasheet for Microchip PIC16F648A-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

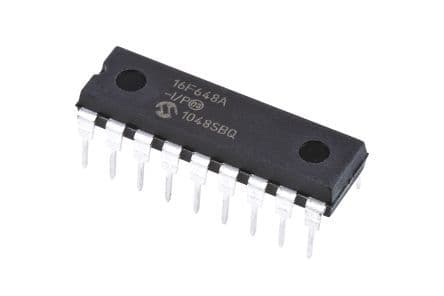

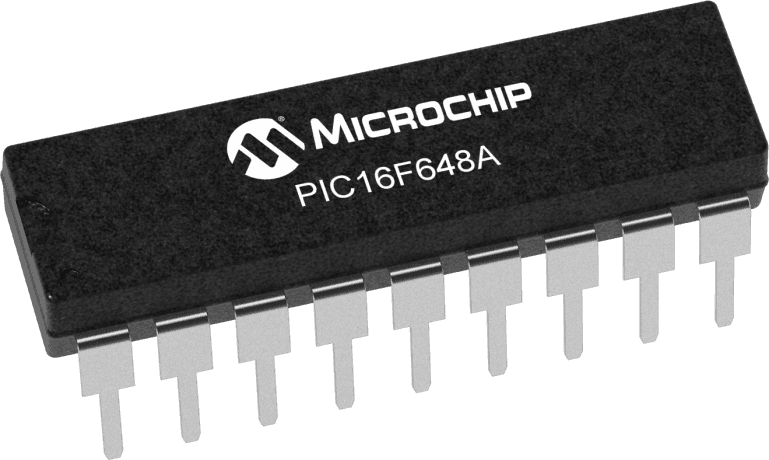

Product Images
