8-bit RISC microcontroller featuring 20MHz clock speed and 1.75KB FLASH memory. This PDIP packaged MCU offers 12 programmable I/Os, two timers/counters, and internal oscillator. Operating from 2V to 5.5V, it includes Brown-out Detect/Reset, POR, and WDT peripherals. Interface options include RS-232 and USB, with a maximum operating temperature of 125°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F676-E/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Through Hole
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F676-E/P Datasheet
Download the complete datasheet for Microchip PIC16F676-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

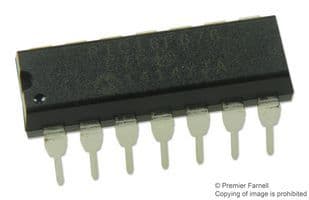

Product Images
