8-bit RISC microcontroller featuring 20MHz clock speed and 1.75KB FLASH memory. This surface mount device offers 64B RAM, 12 programmable I/Os, and 8 ADC channels with one A/D converter. Integrated peripherals include Brown-out Detect/Reset, POR, and a Watchdog Timer. Operating from 2V to 5.5V, it supports RS-232 and USB interfaces and is housed in a 3.9mm wide SOIC package.
Frequency20MHz
PackageSOIC
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F676-I/SL technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
20MHz
Height
1.5mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
8.65mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
100uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F676-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F676-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

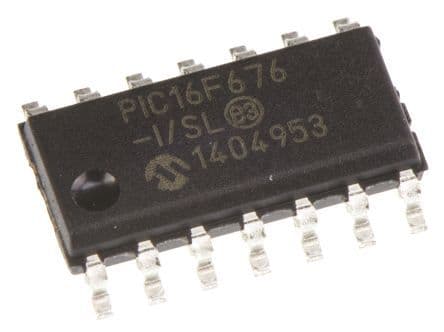

Product Images
