8-bit RISC microcontroller featuring 20MHz operation and 3.5KB FLASH memory. This surface mount device offers 12 programmable I/O pins, 8 analog input channels with one A/D converter, and integrated peripherals including PWM, I2C, SPI, and a watchdog timer. Operating from 2V to 5.5V, it supports a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
Current2.8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F684T-I/SL technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.059inch
Lead Free
Lead Free
Length
0.34inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
0
Oscillator Type
Internal
Package Quantity
2600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
2.8mA
Watchdog Timer
Yes
Width
0.154inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F684T-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F684T-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

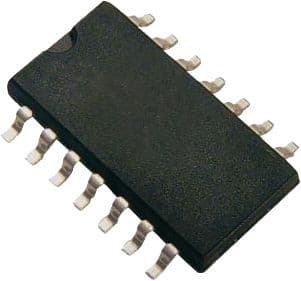

Product Images
