8-bit RISC Flash Microcontroller featuring a 20MHz core frequency and 7KB of FLASH memory. This surface mount device offers 256B RAM, 12 programmable I/Os, and includes peripherals such as Brown-out Detect/Reset, POR, and a Watchdog Timer. Connectivity options include RS-232, USB, SCI, UART, and USART interfaces, along with 8 ADC channels, 1 I2C channel, and 1 SPI channel. Operating within a 2V to 5.5V supply range, it supports a maximum power dissipation of 800mW and operates from -40°C to 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F688-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
RS-232, USB, SCI, UART, USART
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F688-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F688-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

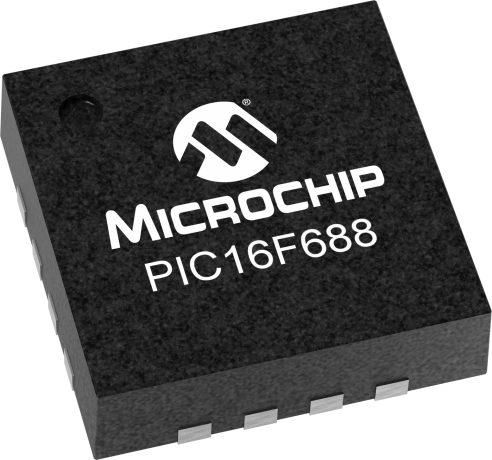

Product Images
