8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This surface-mount device offers 18 programmable I/O pins, 256 bytes of RAM, and an 8-bit address/data bus. Integrated peripherals include I2C, SPI, UART, and a watchdog timer. Operating from 4.5V to 5.5V, it supports a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F689-I/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.35mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
12.8mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, PWM, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
220uA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F689-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F689-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

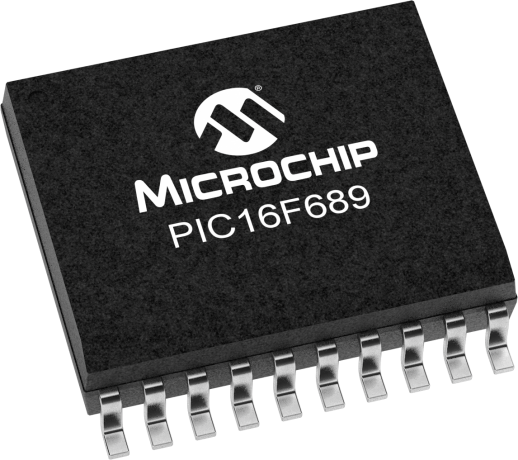

Product Images
