8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 18 programmable I/O pins, supporting I2C, SPI, and UART interfaces. Includes 12 ADC channels, 2 timers, and integrated peripherals like Brown-out Detect, POR, WDT, and PWM. Packaged in a 20-pin SSOP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F689-I/SS technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.85mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, PWM, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
220uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F689-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F689-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

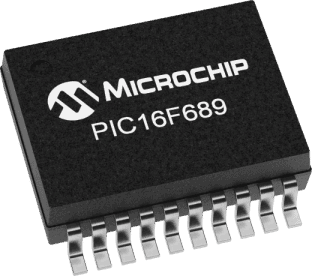

Product Images
