8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This through-hole component offers 18 programmable I/Os, 12 ADC channels, and multiple communication interfaces including I2C, SPI, and UART. It operates from a 4.5V to 5.5V supply, with a maximum power dissipation of 800mW and an operating temperature range of -40°C to 85°C. Integrated peripherals include a watchdog timer, POR, and PWM.
Frequency20MHz
PackagePDIP
Current220uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F690-I/P technical specifications.
General
| Access Time | 20us |
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 0.195inch |
| Interface | I2C, SPI, SSP, UART, USART |
| Lead Free | Lead Free |
| Length | 26.92mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 12 |
| Number of Bits | 8 |
| Number of I/Os | 18 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 18 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Supply Current | 220uA |
| Watchdog Timer | Yes |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F690-I/P Datasheet
Download the complete datasheet for Microchip PIC16F690-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

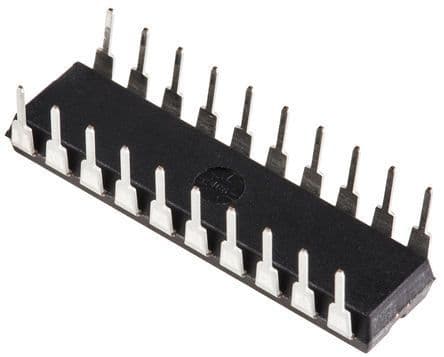

Product Images
