8-bit PIC RISC microcontroller featuring 3.5KB Flash memory and 128B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 4 ADC channels, 4 PWM channels, 3 timers/counters, and 1 UART interface. Supports RS-232 and USB connectivity. Packaged in a 28-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
Current371uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F716-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
0.195inch
Interface
RS-232, USB
Lead Free
Lead Free
Length
23.37mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
371uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F716-I/P Datasheet
Download the complete datasheet for Microchip PIC16F716-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

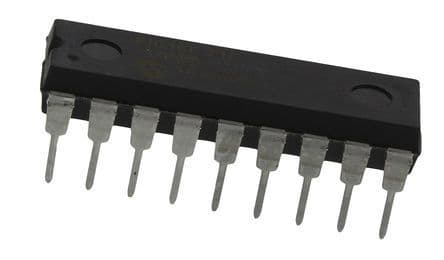

Product Images
