8-bit RISC Flash Microcontroller featuring a 20MHz core frequency and 3.5KB program memory. This surface mount SOIC-18 package offers 128B RAM, 28KB data memory, and 13 programmable I/O pins. Integrated peripherals include 4 PWM channels, 3 timers/counters, 1 UART, and an 8-bit ADC with 4 channels. Operating from 2V to 5.5V, this lead-free component supports RS-232 and USB interfaces with a maximum operating temperature of 85°C.
Frequency20MHz
PackageSOIC
Current371uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F716-I/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
2.35mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
11.55mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
371uA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F716-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F716-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

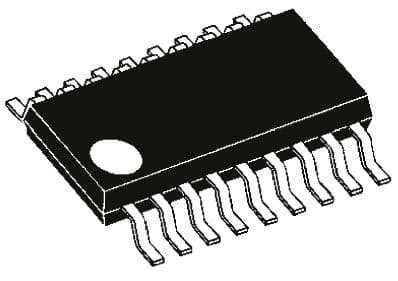

Product Images
