8-bit Flash microcontroller featuring an 8b data bus and a 20MHz maximum operating frequency. This surface mount device offers 22 programmable I/O pins, 3 timers/counters, and supports I2C, SPI, and SSP interfaces. With 3.5KB of FLASH memory and 128B of RAM, it includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Operating within a 2V to 5.5V supply voltage range, it is RoHS compliant and rated for -40°C to 125°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F72-E/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F72-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F72-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

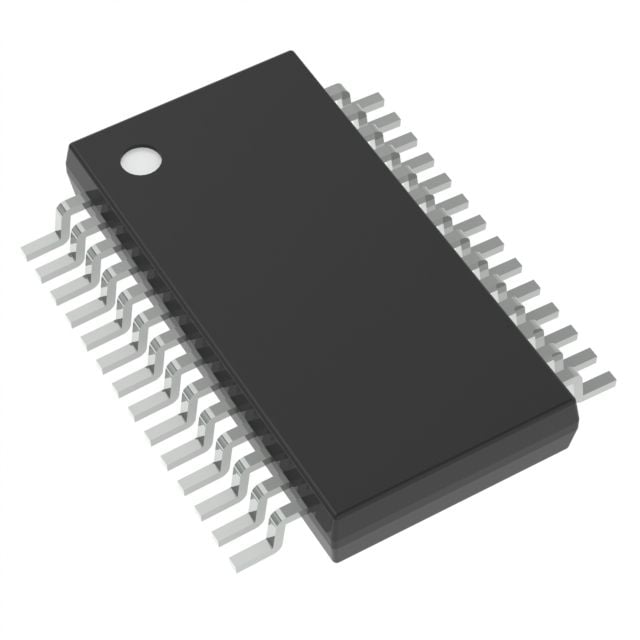

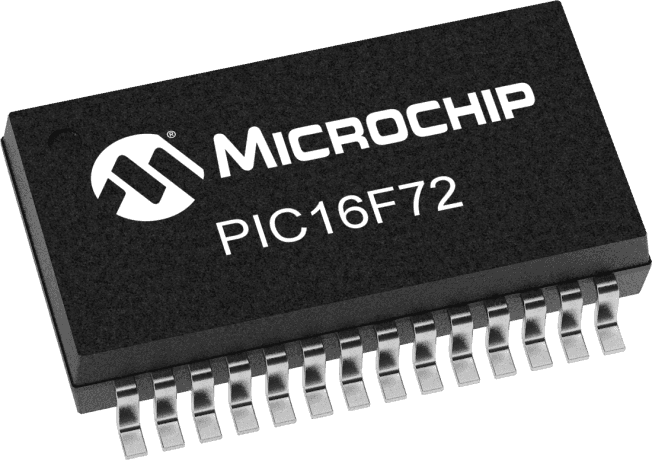

Product Images
